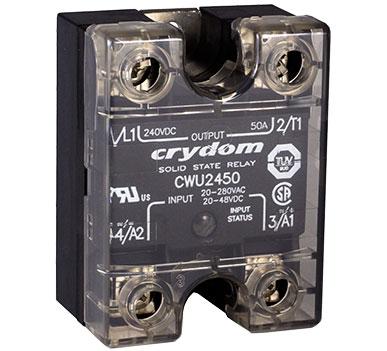

CWU2450 Crydom 快达 交流固态继电器

Crydom 快达 CWU2450 交流固态继电器，控制电压：4-32VDC，输出负载：24-280VAC，50A。
ꄴ前一个： CWU2425 Crydom 快达 交流固态继电器
ꄲ后一个： ELS48125S Crydom 快达交流固态继电器

CW系列简述：



CW 系列面板安装式交流输出固态继电器提供背靠背 SCR 输出，为商业和重型工业负载实现可靠的开关。这种高性能固态继电器在 24 至 660 VAC 时的输出额定值为 10 安培至 125 安培。

CW 系列面板安装式固态继电器包括一个可拆卸的 IP20 触摸安全盖，增加了安全性，还可提供零电压开启（用于阻性负载）或瞬时开启（用于感性负载）输出。

CW 系列面板安装式 SSR 的其他功能包括：

  • 具有出色散热性能的 DBC 基板
  • 3-32 VDC、18-36 VAC、90-280 VAC 和通用交流/直流控制输入选项
  • LED 输入指示灯
  • EMC 符合 3 级别
  • C-UL-US 认证，符合 CE 和 RoHS 标准


同系列产品：



产品型号 控制电压范围 最大负载电流 工作电压范围
CWA2410 90-280 VAC 10 A 24-280 VAC
CWA2410-10 90-280 VAC 10 A 24-280 VAC
CWA2410E 18-36 VAC 10 A 24-280 VAC
CWA2410H 18-36 VAC 10 A 24-280 VAC
CWA2410P 18-36 VAC 10 A 24-280 VAC
CWA24125 90-280 VAC 125 A 24-280 VAC
CWA24125-10 90-280 VAC 125 A 24-280 VAC
CWA24125E 18-36 VAC 125 A 24-280 VAC
CWA24125P 18-36 VAC 125 A 24-280 VAC
CWA2425 90-280 VAC 25 A 24-280 VAC
CWA2425-10 90-280 VAC 25 A 24-280 VAC
CWA2425E 18-36 VAC 25 A 24-280 VAC
CWA2425P 18-36 VAC 25 A 24-280 VAC
CWA2425H 18-36 VAC 25 A 24-280 VAC
CWA2450 90-280 VAC 50 A 24-280 VAC
CWA2450-10 90-280 VAC 50 A 24-280 VAC
CWA2450E 18-36 VAC 50 A 24-280 VAC
CWA2450H 18-36 VAC 50 A 24-280 VAC
CWA2450P 18-36 VAC 50 A 24-280 VAC
CWA2490 90-280 VAC 90 A 24-280 VAC
CWA2490-10 90-280 VAC 90 A 24-280 VAC
CWA2490E 18-36 VAC 90 A 24-280 VAC
CWA2490P 18-36 VAC 90 A 24-280 VAC
CWA4810 90-280 VAC 10 A 48-660 VAC
CWA4810-10 90-280 VAC 10 A 48-660 VAC
CWA4810E 18-36 VAC 10 A 48-660 VAC
CWA4810P 18-36 VAC 10 A 48-660 VAC
CWA48125 90-280 VAC 125 A 48-660 VAC
CWA48125-10 90-280 VAC 125 A 48-660 VAC
CWA48125E 18-36 VAC 125 A 48-660 VAC
CWA48125E-10 18-36 VAC 125 A 48-660 VAC
CWA48125P 18-36 VAC 125 A 48-660 VAC
CWA4825 90-280 VAC 25 A 48-660 VAC
CWA4825-10 90-280 VAC 25 A 48-660 VAC
CWA4825E 18-36 VAC 25 A 48-660 VAC
CWA4825P 18-36 VAC 25 A 48-660 VAC
CWA4850 90-280 VAC 50 A 48-660 VAC
CWA4850-10 90-280 VAC 50 A 48-660 VAC
CWA4850E 18-36 VAC 50 A 48-660 VAC
CWA4850H 18-36 VAC 50 A 48-660 VAC
CWA4850P 18-36 VAC 50 A 48-660 VAC
CWA4890 90-280 VAC 90 A 48-660 VAC
CWA4890-10 90-280 VAC 90 A 48-660 VAC
CWA4890E 18-36 VAC 90 A 48-660 VAC
CWA4890H 18-36 VAC 90 A 48-660 VAC



产品型号 控制电压范围 最大负载电流 工作电压范围
CWA4980P 18-36 VAC 90 A 48-660 VAC
CWD2410 3-32 VDC 10 A 24-280 VAC
CWD2410-10 3-32 VDC 10 A 24-280 VAC
CWD2410H 3-32 VDC 10 A 24-280 VAC
CWD2410P 3-32 VDC 10 A 24-280 VAC
CWD24125 3-32 VDC 125 A 24-280 VAC
CWD24125-10 3-32 VDC 125 A 24-280 VAC
CWD24125P 3-32 VDC 125 A 24-280 VAC
CWD2425 3-32 VDC 25 A 24-280 VAC
CWD2425-10 3-32 VDC 25 A 24-280 VAC
CWD2425H 3-32 VDC 25 A 24-280 VAC
CWD2425P 3-32 VDC 25 A 24-280 VAC
CWD2425P-10 3-32 VDC 25 A 24-280 VAC
CWD2425PH 3-32 VDC 25 A 24-280 VAC
CWD2450 3-32 VDC 50 A 24-280 VAC
CWD2450-10 3-32 VDC 50 A 24-280 VAC
CWD2450H 3-32 VDC 50 A 24-280 VAC
CWD2450P 3-32 VDC 50 A 24-280 VAC
CWD2490 3-32 VDC 90 A 24-280 VAC
CWD2490-10 3-32 VDC 90 A 24-280 VAC
CWD2490P 3-32 VDC 90 A 24-280 VAC
CWD4810 4-32 VDC 10 A 48-660 VAC
CWD4810-10 4-32 VDC 10 A 48-660 VAC
CWD4810P 4-32 VDC 10 A 48-660 VAC
CWD48125 4-32 VDC 125 A 48-660 VAC
CWD48125-10 4-32 VDC 125 A 48-660 VAC
CWD48125P 4-32 VDC 125 A 48-660 VAC
CWD48125P-10 4-32 VDC 125 A 48-660 VAC
CWD4825 4-32 VDC 25 A 48-660 VAC
CWD4825-10 4-32 VDC 25 A 48-660 VAC
CWD4825H 4-32 VDC 25 A 48-660 VAC
CWD4825P 4-32 VDC 25 A 48-660 VAC
CWD4825P-10 4-32 VDC 25 A 48-660 VAC
CWD4850 4-32 VDC 50 A 48-660 VAC
CWD4850-10 4-32 VDC 50 A 48-660 VAC
CWD4850H 4-32 VDC 50 A 48-660 VAC
CWD4850P 4-32 VDC 50 A 48-660 VAC
CWD4850P-10 4-32 VDC 50 A 48-660 VAC
CWD4850PH 4-32 VDC 50 A 48-660 VAC
CWD4890 4-32 VDC 90 A 48-660 VAC
CWD4890-10 4-32 VDC 90 A 48-660 VAC
CWD4890H 4-32 VDC 90 A 48-660 VAC
CWD4890P 4-32 VDC 90 A 48-660 VAC
CWD4890PH 4-32 VDC 90 A 48-660 VAC
CWU2410 20-48 VDC/20-280 VAC 10 A 24-280 VAC



产品型号 控制电压范围 最大负载电流 工作电压范围
CWU2410-10 20-48 VDC/20-280 VAC 10 A 24-280 VAC
CWU2410P 20-48 VDC/20-280 VAC 10 A 24-280 VAC
CWU2410P-10 20-48 VDC/20-280 VAC 10 A 24-280 VAC
CWU24125 20-48 VDC/20-280 VAC 125 A 24-280 VAC
CWU24125-10 20-48 VDC/20-280 VAC 125 A 24-280 VAC
CWU24125P 20-48 VDC/20-280 VAC 125 A 24-280 VAC
CWU24125P-10 20-48 VDC/20-280 VAC 125 A 24-280 VAC
CWU2425 20-48 VDC/20-280 VAC 25 A 24-280 VAC
CWU2425-10 20-48 VDC/20-280 VAC 25 A 24-280 VAC
CWU2425P 20-48 VDC/20-280 VAC 25 A 24-280 VAC
CWU2425P-10 20-48 VDC/20-280 VAC 25 A 24-280 VAC
CWU2450 20-48 VDC/20-280 VAC 50 A 24-280 VAC
CWU2450-10 20-48 VDC/20-280 VAC 50 A 24-280 VAC
CWU2450P 20-48 VDC/20-280 VAC 50 A 24-280 VAC
CWU2450P-10 20-48 VDC/20-280 VAC 50 A 24-280 VAC
CWU2490 20-48 VDC/20-280 VAC 90 A 24-280 VAC
CWU2490-10 20-48 VDC/20-280 VAC 90 A 24-280 VAC
CWU2490P 20-48 VDC/20-280 VAC 90 A 24-280 VAC
CWU2490P-10 20-48 VDC/20-280 VAC 90 A 24-280 VAC
CWU4810 20-48 VDC/20-280 VAC 10 A 48-660 VAC
CWU4810-10 20-48 VDC/20-280 VAC 10 A 48-660 VAC
CWU4810P 20-48 VDC/20-280 VAC 10 A 48-660 VAC
CWU4810P-10 20-48 VDC/20-280 VAC 10 A 48-660 VAC
CWU48125 20-48 VDC/20-280 VAC 125 A 48-660 VAC
CWU48125-10 20-48 VDC/20-280 VAC 125 A 48-660 VAC
CWU48125P 20-48 VDC/20-280 VAC 125 A 48-660 VAC
CWU48125P-10 20-48 VDC/20-280 VAC 125 A 48-660 VAC
CWU4825 20-48 VDC/20-280 VAC 25 A 48-660 VAC
CWU4825-10 20-48 VDC/20-280 VAC 25 A 48-660 VAC
CWU4825P 20-48 VDC/20-280 VAC 25 A 48-660 VAC
CWU4825P-10 20-48 VDC/20-280 VAC 25 A 48-660 VAC
CWU4850 20-48 VDC/20-280 VAC 50 A 48-660 VAC
CWU4850-10 20-48 VDC/20-280 VAC 50 A 48-660 VAC
CWU4850P 20-48 VDC/20-280 VAC 50 A 48-660 VAC
CWU4850P-10 20-48 VDC/20-280 VAC 50 A 48-660 VAC
CWU4890 20-48 VDC/20-280 VAC 90 A 48-660 VAC
CWU4890-10 20-48 VDC/20-280 VAC 90 A 48-660 VAC
CWU4890P 20-48 VDC/20-280 VAC 90 A 48-660 VAC
CWU4890P-10 20-48 VDC/20-280 VAC 90 A 48-660 VAC
